Uni-Smart JAR 85 LiVAR
5,790.00 AED

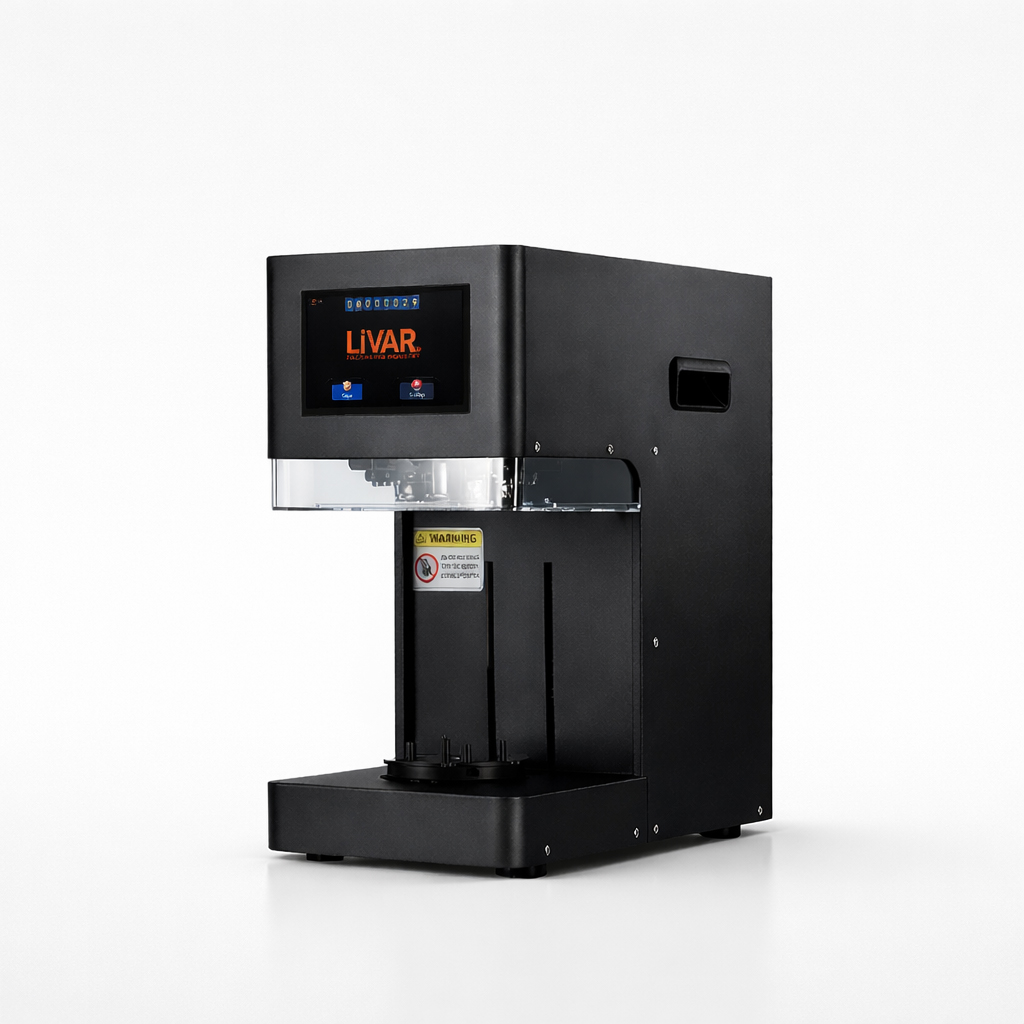

UNI-SMART 85 LiVAR
UNI-SMART 85 LiVAR ( LiVAR® ) is a JAR lid sealing machine designed for JARs with an exclusive
85 mm mouth diameter. With a touch screen, Auto/Manual operation,
a powerful motor, and smart height adjustment, it delivers fast, stable, and
low-noise sealing performance
Main Specification
Only Mouth Diameter: 85 mm
Supports #305 standard; compatible with all aluminum lids (FO / EOP)
| Specification | Details |
|---|---|
| Mouth Diameter | 85 mm Supports #305 standard; compatible with all aluminum lids (FO / EOP) |

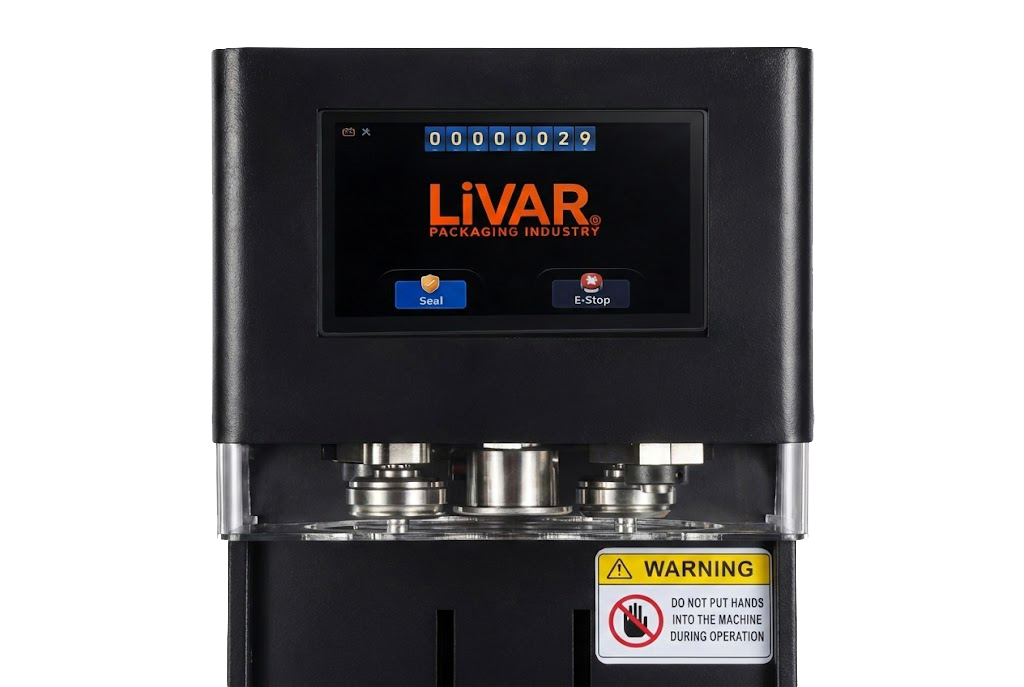

| Touch Screen | Touchscreen control (with Seal and E-Stop buttons on the panel) |
| Operation Modes | Auto / Manual |
| Display | Upgraded full-color TFT display (high resolution, smart and fully touch) |
| One-Touch Sealing | One-touch operation; seals any compatible container type |
| Motor Power | 370W performance motor (fast, stable, low-noise) |
| Designed For | Sealing jars with 85 mm mouth diameter |
| Smart Height Adjustment | Supports jar height from 6 cm to 20 cm (no base change required, no expertise needed) |
| Sensor | Upgraded version with an optical sensor |
| Color | Black / White |
| Size | 45 cm × 25 cm × 60 cm |
| Material | Metal paint electrostatic |
| Rated Voltage | 220 V / 110 V |
| Net Weight | 39 kg |
| HS CODE | 8422.30.9150 (CAN JAR Sealing Machine) |
Features
1. Touch Screen
The machine is controlled via a touch screen
(Seal and E-Stop buttons included on the panel).
2. Auto/Manual Operation

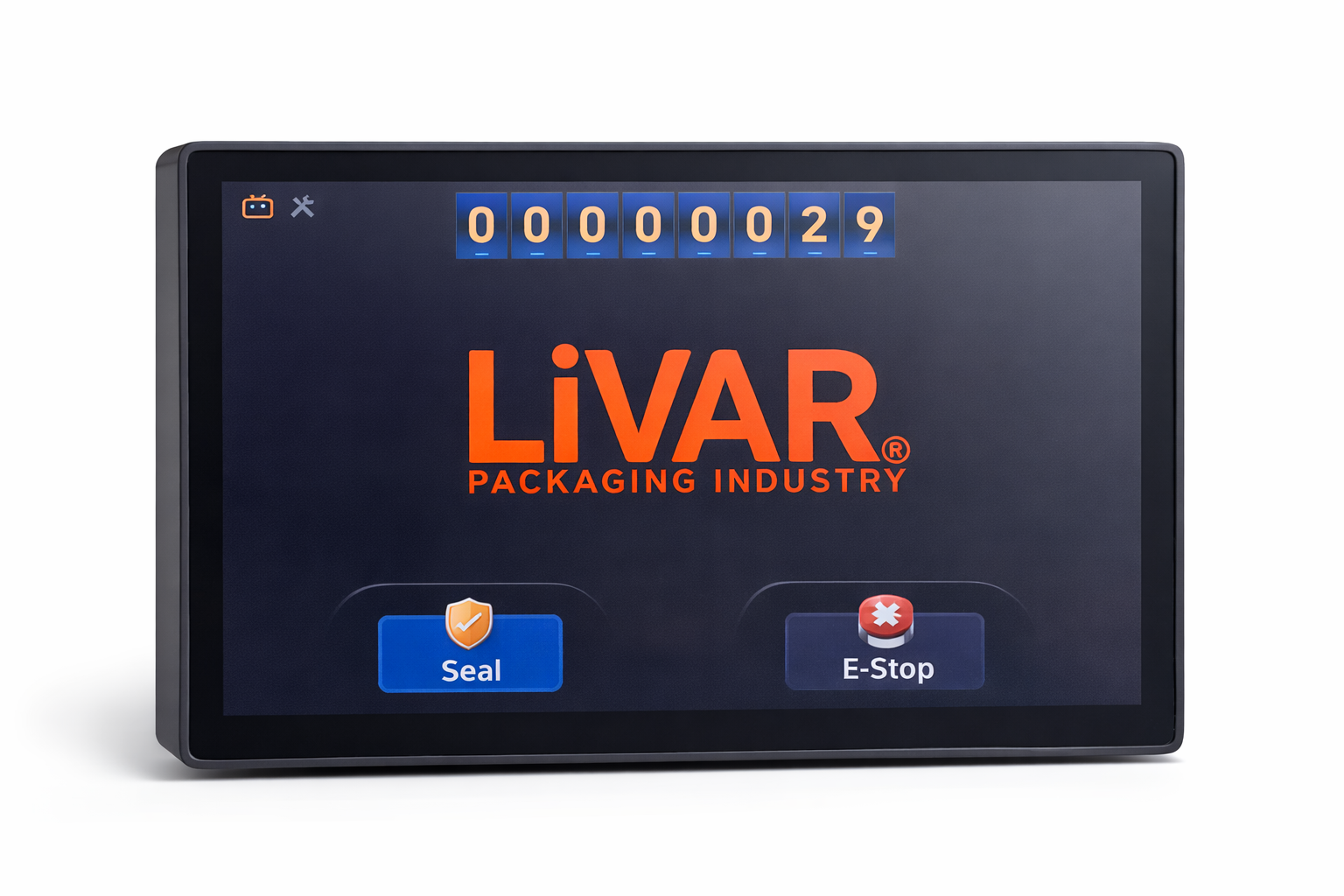

- Upgraded full-color TFT display
- Very high resolution for clearer visuals and more detail
- Fully touch and smart interface
- One-touch operation; seals any compatible container type
3. Powerful Motor
- Equipped with a 370W performance motor
- Designed for sealing jars with an 85 mm mouth diameter
- Fast, stable, and low-noise operation
4. Adjustable Smart
- Supports jar height from 6 cm to 20 cm
- Seals different jar heights without changing the base (no expertise required)
- Suitable for home-based and office businesses
Lid & Standard Compatibility
Supports #305 standard and is compatible with all aluminum lids
(FO / EOP).
Upgraded Sensor
Upgraded version with an optical sensor.
Body Specifications
- Color: Black / White
- Size: 45 cm × 25 cm × 60 cm
- Material: Metal paint electrostatic
- Rated Voltage: 220 V / 110 V
- Net Weight: 39 kg
HS CODE
CAN JAR Sealing Machine: 8422.30.9150
Pallet Information (calculated based on the dimensions and net weight shown on the image)
Machine volume (CBM per unit):
0.45 × 0.25 × 0.60 = 0.0675 m³
| Pallet Option | Details |
|---|---|
| Option 1 | Euro pallet 120 × 80 cm (total height approx. 1.5 m) |
| Units per Pallet | 14 units (7 units per layer × 2 layers) |
| Net Goods Weight per Pallet | 14 × 39 = 546 kg |
| Net Goods CBM | 14 × 0.0675 = 0.945 m³ |
| Approx. Packed Pallet CBM | Approx. 1.290 m³ (based on external pallet dimensions) |
| Option 2 | Pallet 120 × 100 cm (total height approx. 1.5 m) |
| Units per Pallet | 20 units (10 units per layer × 2 layers) |
| Net Goods Weight per Pallet | 20 × 39 = 780 kg |
| Net Goods CBM | 20 × 0.0675 = 1.350 m³ |
| Approx. Packed Pallet CBM | Approx. 1.613 m³ |
Note: These calculations are based strictly on the machine dimensions and net weight shown on the image.
If carton/packaging dimensions and gross weight are available, the final pallet count, CBM, and shipping weight
for international transport can be calculated more accurately.
